Smart Energy Storage Cabinet System

Get a Quote Now

Description

Reviews

Advantages

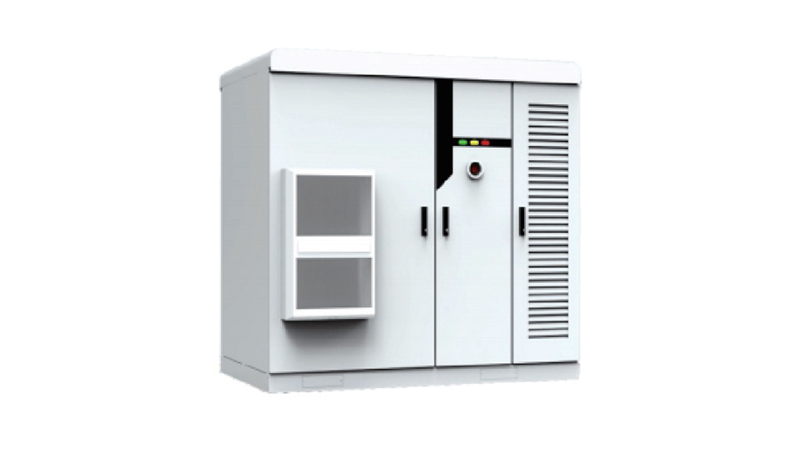

Outdoor energy storage cabinet HJ-SG-C type: This series of products has built-in PCS, EMS, on-grid switching unit, power distribution unit, temperature control system, BMS system, fire protection system, anti-surge device, etc. Cabinet design, easy to transport. This product supports power output of 30KW~90KW, and the system capacity is 100KWH-300KWH. It supports parallel connection of multiple machines and can be flexibly expanded.

Ffeatures

1. The structure is simplified, the space requirement is small, the layout is flexible, and it is easy to install, operate and maintain

2. Built-in fire protection, temperature control, and early warning systems for multiple safety guarantees

3. Single-cluster management, intelligent operation and maintenance, and control at will

4. IP55 protection level, can withstand various climatic environments

Application Scenario

Industrial and commercial, industrial and mining, border posts, field construction, emergency rescue

DC parameters	battery capacity	100kWh~300kWh
	DC voltage range	400V~1000V
AC side parameters	Rated AC power	30kW~150kW
	Rated AC current	43A~216A
	Rated grid voltage	400V
	Allowable grid voltage range	305V~485V
	Rated grid frequency	50/60Hz
	isolation method	with isolation
Energy Storage Cabinet Parameters	degree of protection	IP54
	Fire Fighting System	Perfluorohexanone fire extinguishing agent
	Operating temperature range	-30℃～55℃
	Dimensions WDH	Single cabinet combined type, whole machine integrated type, optional
	BMS communication method	CAN, RS485
	PCS cooling method	Temperature control intelligent air cooling
	battery cell cooling	Air conditioner/heat exchange all-in-one cooling
	highest altitude	4500m (>3000 need derating)
