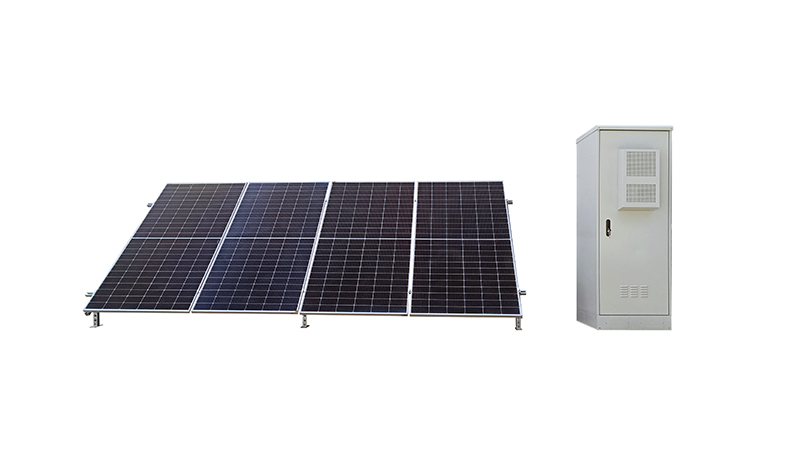

Single (double) warehouse base station energy cabinet

Single (double) warehouse base station energy cabinet

Description

Reviews

Base station energy cabinet

Floor-standing, used in communication base stations, smart cities, smart transportation, power systems, edge sites and other scenarios to provide stable power supply and backup and optical wiring, and may also be used for medium and high-power communication sites in areas without mains power Power supply, and provide reliable accommodation for network servers, edge computers, professional equipment, monitoring systems, photovoltaics, and battery systems. The unified power platform system supports the input and output of AC and DC standards, meets the requirements of different power codes, and can solve the problem of difficult introduction of mains power in remote roads, forests, mountainous areas and other scenarios, and provides a one-stop solution for the site.


Support the introduction of multiple green power sources from photovoltaic/wind power/oil generators, and multiple voltage outputs: AC220V, DC48V, -12V;

With intelligent system management, better energy saving and monitoring management;

Efficient, safe, long life (up to 3500 cycles) energy storage battery;

The temperature-controlled fan automatically adjusts the wind speed, low power consumption, and supports RS485 serial communication upload;

The double-layer insulation structure of the cabinet has a low comprehensive thermal conductivity (heat transfer coefficient 0.024W/(mK));

The protection level of the cabinet is IP55, and the salt spray time is 500 hours, which can be used in various harsh outdoor environments;

The shell of the product is made of aluminum alloy material, which is light and can be carried by hand. It is a prefabricated product in the factory, and the cabinet can be hoisted as a whole;

Complete lightning protection grounding system;

The FRP material on the outer layer of the cabinet has strong anti-corrosion performance and can be used in coastal scenes;



Configuration parameter table
serial number name Parameter Description quantity unit Remark
1 Outdoor cabinet cabinet 2100*900*900mm(H*W*D), the cabinet frame is made of galvanized material 1.5mm, and heat insulation material is pasted inside; HJ-DYG02-1 Front/side door opening operation, wall-mounted, pole-mounted, and floor-mounted installation; photovoltaic panel installation position is reserved on the top; 1 tower Optional double cabinet Size 2100*1650*900
2 Dynamic monitoring unit 4-way RS485 serial port, 4-way DI input, 4-way DO dry contact output, the software has a web management interface, the collector can be configured through a web browser, and it supports centralized monitoring through SNMP or B interface access to the background monitoring system. Environmental detection: smoke detection, access control, temperature and humidity, water immersion, etc. 1 set
3 Automatic fire extinguishing device 2U, rack type, automatic fire extinguishing device is composed of perfluorohexanone storage container, container valve, pressure signal device, temperature trigger, perfluorohexanone fire extinguishing agent, pressure gauge, etc., and the container stores perfluorohexanone fire extinguishing agent 1 set
4 smart Lock Smart lock: remote switch, card swiping, mechanical key; 2 set
5 12-core optical wiring Including 12-core pigtail and fiber optic adapter, etc. 1 tower
6 dome camera ≥2 million infrared hemispheres (POE) (can support external memory card) 1 set Door open capture function
7 Heat exchange/air conditioning integrated cabinet AC1500W air conditioner + 120W/K heat transfer iron 1~2 set
8 power distribution unit AC input: 63A/3P*2 with interlock device; AC lightning protection: Class C 20KA-40KA; AC output 332A/1P*10A/1P*2, national standard socket*2; DC output power distribution: 63A*3,32A *3*16A*4; configure intelligent air switch *3 roads, battery air switch 125A*4; 1 set Can be adjusted according to needs
9 rectifier module Rectifier module 50A, high efficiency 1~4 set Photovoltaic and rectifier modules inter-plug: fully equipped with 24KW
10 Photovoltaic module Photovoltaic module 50A, MPPT efficiency: ≥99% (select this module when configuring photovoltaic modules) 1~4 set
11 Wind Energy Control Module 2.5kW, input AC96V, output DC48V 1 set Optional (matched with fan)
12 inverter module Inverter module 3KVA 1 set Optional
13 12V rectifier module 500W 1 set Optional
14 Lithium iron phosphate battery 100AH, rack-mounted -48V, more than 3000 charging cycles, 16S 3~6 set Maximum 30KW.h
15 Solar panels Single crystal panel complete assembly 290W, including adapter, installation accessories 2 set Optional Maximum 2 pieces
16 Wind Turbines 1KW~2KW, including pole body 9 meters high 1 set Optional (matches with fan module)
