Pole-type base station energy cabinet

Get a Quote Now

Description

Reviews

Advantages

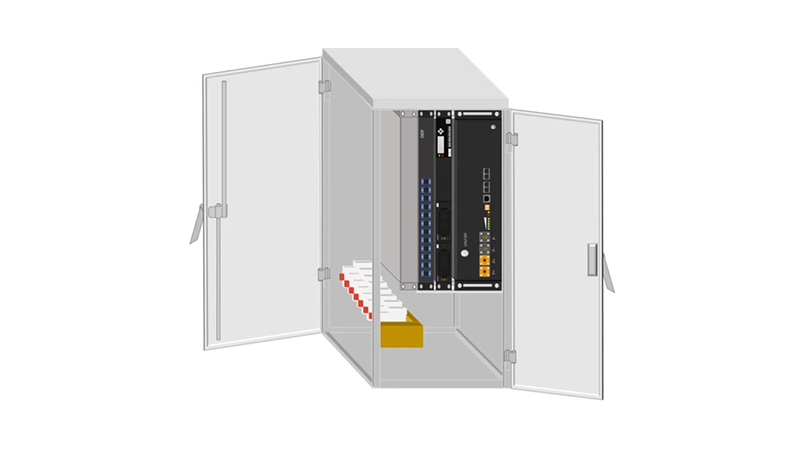

Base station energy cabinet: a highly integrated and intelligent hybrid power system that combines multi-input power modules (photovoltaic, wind energy, rectifier modules), monitoring units, power distribution units, lithium batteries, smart switches, FSU and ODF wiring, etc., to effectively solve Various functional requirements such as power supply, backup power supply, and optical network access of base station communication equipment.

Product Features

Introduce photovoltaic and wind energy to achieve low-carbon energy saving;

Simple installation method, which can support various installation methods such as wall hanging, pole holding and flooring;

Integrate monitoring unit and meet NB/4G wireless communication access operation and maintenance management platform at the same time;

The installation space of fiber splicing tray and passive wavelength splitter is reserved inside to facilitate fiber access;

The internal integrated lithium battery has the guarantee ability of backup power supply;

With intelligent power-off function, remote control of each branch output on-off function;

Photovoltaic, wind power generation, inverter output, 12V output, etc. can be configured according to demand;

Configuration parameter table
serial number	name	Parameter Description	quantity	unit	Remark
1	Outdoor cabinet cabinet	750520380mm(HWD),The frame of the cabinet is made of 1.5mm galvanized material, and the heat insulation material is pasted inside;HJ-DYG03-1	1	tower
		Front/side door opening operation, wall-mounted, pole-mounted, and floor-mounted installation; photovoltaic panel installation position is reserved on the top;
2	Dynamic monitoring unit	4-way RS485 serial port, 4-way DI input, 4-way DO dry contact output, the software has a web management interface, the collector can be configured through a web browser, and it supports centralized monitoring through SNMP or B interface access to the background monitoring system. Environmental detection: smoke detection, access control, temperature and humidity, water immersion, etc.	1	set
3	Automatic fire extinguishing device	QRR0.1G/SQ hot aerosol fire extinguishing device,	1	set
4	smart Lock	Smart lock: remote switch, card swiping, mechanical key;	2	set
5	12-core optical wiring	Including 12-core pigtail and fiber optic adapter, etc.	1	tower
6	dome camera	≥2 million infrared hemispheres (POE) (can support external memory card)	1	set	Door open capture function
7	smart fan	Intelligent adjustable speed fan, Rs485 communication, power consumption 30W, air volume MAX: 10.0m3/min	1	set	Need to be connected to FSU for monitoring
8	power distribution unit	AC input: 32A/3P2 with interlock device; AC lightning protection: Class C 20KA-40KA; AC output: 32A/2P10A/1P2, national standard socket2; DC output power distribution: 63A1, 32A216A2; configure intelligent air switch 3 channels, battery air switch 100A1;	1	set	Can be adjusted according to needs
9	rectifier module	Rectifier module 50A, high efficiency	2	set
10	Photovoltaic module	Photovoltaic module 50A, MPPT efficiency: ≥99%(This module is selected when configuring photovoltaic modules)	1	set
11	Wind Energy Control Module	2.5kW, input AC96V, output DC48V	1	set	Optional
					(matched with fan)
12	inverter module	Inverter module 3KVA	1	set	Optional
13	12V rectifier module	500W	1	set	Optional
14	Lithium iron phosphate battery	100AH, rack-mounted -48V, more than 3000 charging cycles, 16S	1	set	5KW.h
15	Solar panels	Single crystal panel complete assembly 290W, including adapter, installation accessories	2	set	Optional
					Maximum 2 pieces
16	Wind Turbines	1KW~2KW, including pole body 9 meters high	1	set	Optional
					(matches with fan module)
