ALL IN ONE Home Energy Storage System

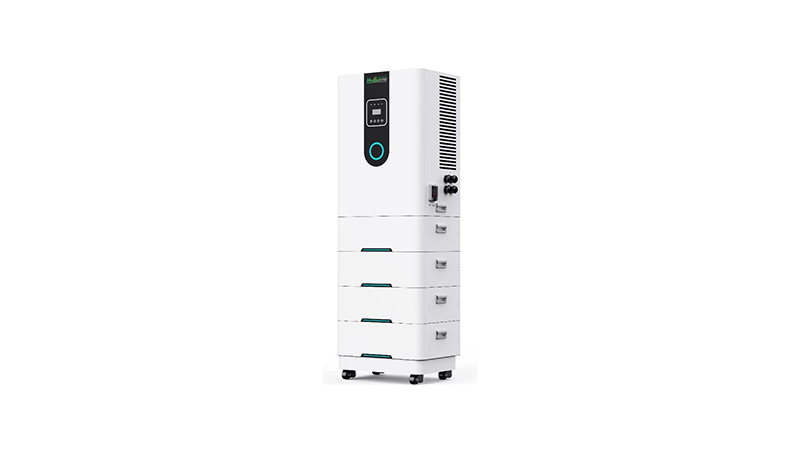

Huijue All-ONE HomePower

IHP-B20/25-EH3P10K-H-UN
Huijue All-ONE HomePower

Description

Reviews

Uniquely Flexible

Lego stack Quick installation

Compatible battery capacity up to 25kW·h

Built-in distribution block, removing inverter core without affecting backup loads

Intelligent Integration

Integrated backup bypass switch

Integrated PV, grid and battery switches

Dual protection with fuse and isolator

High performance

20ms switching time between on-grid mode and off-grid mode

Grid output power up to 10kW

Charge/Discharge current up to 50A

PV input power up to 15kW

AC input current up to 15.9A, support backup load running and battery charging at the same time

Multiple functions

Integrated bluetooth supports APP commissioning

Multiple working modes to maximize self-consumption

Intelligent EMS function

Model Name IHP-B10-EH3P20K-H-UN IHP-B20-EH3P25K-H-UN
Battery Compatibility
Nominal capacity range 20.48 kW ·h 25.6kW ·h
Shoto HP-S5 4 pcs/ 20.48 kW ·h 5 pcs/ 25.6 kW ·h
Battery voltage range 320-467.2 V 400-584 V
Max. charge/discharge power 20 kW 25 kW
Max  charge/discharge current 50 A 50 A
Communication CAN CAN
Cell type LFP LFP
Operating temperature Charge:0℃-50℃
  Discharge:-20℃-55℃
Input DC (PV side)
Recommended max  PV power 15 kW
MPPT voltage range 180-850 V
Efficiency 98 2%
Output AC
Rated output power 10 kW
Max. apparent output power 11 kVA, 10 s
Back-up switch time
Rated output voltage 3/N/PE, 400 V
Rated frequency 50 Hz / 60 Hz
Rated output current 15.9A
THDv (@linear load)
General Data
Dimensions (H*W*D) 1750*600*420 mm 1950*600*420 mm
Weight 299 kg 353 kg
Topology High frequency isolation (for battery)
Operating ambient temperature -15~ +55℃
Ingress protection IP20
Cooling concept Intelligent redundant fan-cooling
Max  operation altitude 2000 m
Safety/EMC standard IEC62109-1/-2, CE-EMC, UN38.3, IEC62477
