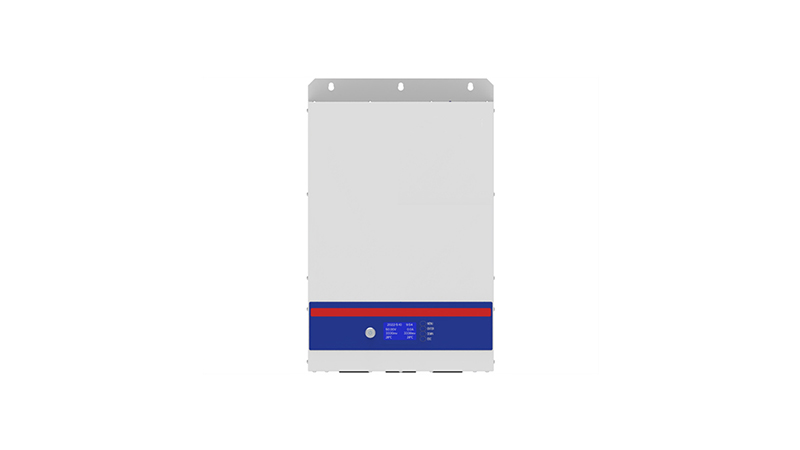

Home energy storage system (wall-mounted)
Description
Reviews
Applications
It is suitable for household energy storage powersupply for small-capacity access network equipment, household electricalequipmentcommercialoowerbackupequipmentand household backup power equipment.
Advantages
It had the function ofcentral control，batterymaintenance and management to meet the requirements of no one on duty: it could be monitored in real time through the mobile APP.
Model: HP10-Box5 household energy storage module (wall-mounted)
Voltage/Capacity: 48V/51.2V 100Ah
Dimensions: 580mm*470mm*150mm
Charge and discharge rate (Max): 0.5C/1C
25°C cycle life: 3500 times @80%DOD&70%EOL
BMS: support Deye, Growatt, GoodWe, Victron, Shouhang, SMA,Communication of mainstream inverters such as Riyueyuan, Shuori, Jinlong and Studer;
Installation method: battery pack wall-mounted installation,2~6 battery packs are used in parallel, easy and fast installation frame;
Certification: Comply with IEC62619, CE, UN38.3 certification.
| product name | Home energy storage system (wall-mounted) | ||||
|---|---|---|---|---|---|
| serial number | parameter item | Specification Description | |||
| 4 | battery model | HJD-HSSL-WM01 | HJD-HSSL-WM02 | HJD-HSSH-SM03 | HJD-HSSL-SM04 |
| 5 | Battery Type | Lithium iron phosphate battery | |||
| 6 | battery capacity | 100Ah | 200Ah | 400Ah | 400Ah |
| 7 | Rated voltage | 48Vdc | 192Vdc | ||
| 8 | voltage range | 40Vdc~54Vdc | 160Vdc~216Vdc | ||
| 9 | Rated charge and discharge current | 50A | 100A | 4 | 4 |
| 10 | Maximum charge and discharge current | 100A | 200A | 50A | 100A |
| 11 | cycle life | ≥2000 times@80%DOD@25℃ | 100A | 200A | |
| 12 | way of communication | RS485/CAN | |||
| 13 | display screen | LCD/LED display (optional) | |||
| 14 | Module size (W*D*H)/(for reference) | 550*220*650mm | |||
| 15 | Module weight/(for reference) | 50kg | |||
| 16 | degree of protection | IP55 | 115kg | ||
| 17 | Relative humidity | 10%~90% | |||
| 18 | Operating temperature | 0℃~50℃, -10℃ ~50℃ | |||
| 19 | installation method | Wall-mounted | |||
| 20 | Fastener | Standard accessories | |||
| 21 | Product Certification/Certificate | UN38.3/CE/UL1973 | |||
