Household Solar System Battery
Energy Storage Equipment
Get A Quote Now!
We Are Leading Energy Storage Equipment Manufacturer, Contact Us Now!

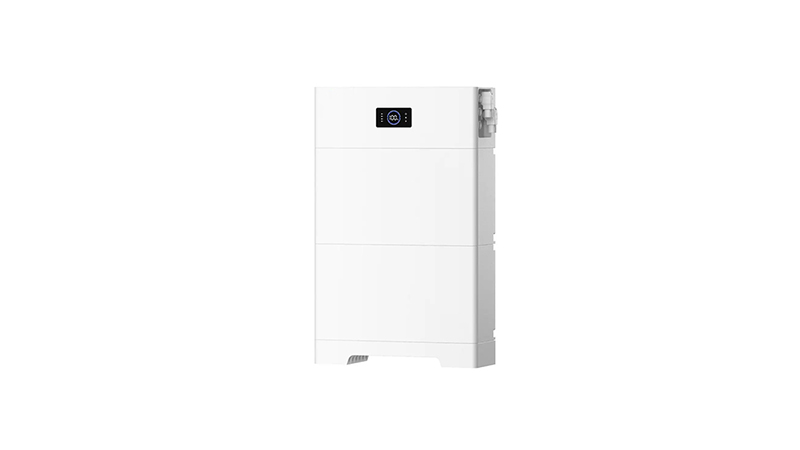

Home energy storage system (stacked2)
Description
Reviews
Applications
lt is suitable for household energy storage power supply for small-capacity access network equipment, household electrical equipment, commercial power backup equipment, and household backup power equipment.
Advantages
It had the function ofcentral control，batterymaintenance and management to meet the requirements of no one on duty: it could be monitored in real time through the mobile APP.
| product name | Home energy storage system (stacked) | ||||
|---|---|---|---|---|---|
| serial number | parameter item | Specification Description | |||
| 3 | battery model | HJD-HSSH-SM01 | HJD-HSSH-SM02 | HJD-HSSH-SM03 | HJD-HSSL-SM04 |
| 4 | Battery Type | Lithium iron phosphate battery | |||
| 5 | battery capacity | 200Ah | 300Ah | 400Ah | 400Ah |
| 6 | Rated voltage | 96Vdc | |||
| 7 | voltage range | 40Vdc~54Vdc | |||
| 8 | Parallel quantity | 2 | 3 | 4 | 4 |
| 9 | Rated charge and discharge current | 50A | 50A | 50A | 100A |
| 10 | Maximum charge and discharge current | 100A | 100A | 100A | 200A |
| 11 | cycle life | ≥2000 times@80%DOD@25℃ | |||
| 12 | way of communication | RS485/CAN | |||
| 13 | display screen | LCD/LED display (optional) | |||
| 14 | Module size (W*D*H)/(for reference) | 600*500*550mm | |||
| 15 | Module weight/(for reference) | 75kg | |||
| 16 | degree of protection | IP55 | |||
| 17 | Relative humidity | 10%~90% | |||
| 18 | Operating temperature | 0℃~50℃, -10℃ ~50℃ | |||
| 19 | installation method | stacked | |||
| 20 | Fastener | Standard Fixed/Mobile Base | |||
| 21 | Product Certification/Certificate | UN38.3/CE/UL1973 | |||
