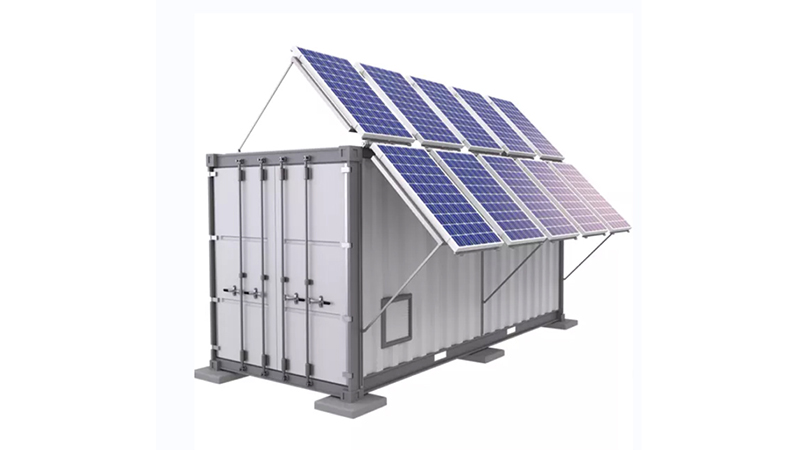

HJ-SG-R01 series

Communication container station

Get a Quote Now

Description

Reviews

Huijue Group Communication Container Station: It is a large outdoor base station with large capacity and modular design. This series of products can integrate photovoltaic and wind clean energy, energy storage batteries, configure a 6U integrated hybrid power system, and output DC48V ( the configuration can be remotely controlled switch), including ODF module, FSU monitoring module integrated product, single cabinet type. It is used in scenarios such as communication base stations, smart cities, transportation, power systems and other edge sites to provide stable power supply and optical distribution networks. It may also be used to power medium and high-power communication sites in areas without mains power, integrating photovoltaic, wind power, Energy storage new energy system to achieve energy saving solutions .

Features

The introduction of multiple green power sources from photovoltaic / wind power / oil generators, with full load capacity up to 600A

3500 cycles ) energy storage backup battery

Temperature control energy-saving fresh air system + precision air conditioning and refrigeration, intelligent temperature control management, reducing air conditioning power consumption

The product shell is made of aluminum alloy, which is light and can be transported manually. It also supports factory prefabricated products, and the cabinet can be hoisted as a whole.

Multiple voltage outputs: AC220V , DC48V , -12V can be used for various equipment voltages in communications, networks, servers, and edge computing

With intelligent system management, better energy saving and monitoring management

The cabinet protection level is IP55 and the salt spray time is 500 hours. It can be used in a variety of harsh outdoor environments.

Complete lightning protection grounding system; the outer FRP material of the cabinet has strong anti-corrosion properties and can be used in coastal scenarios

Application scenarios

Industry and commerce industrial and mining border defense posts field construction emergency rescue

model		HJ-SG-R01-20	HJ-SG-R01-10
Environmental requirements	Operating temperature	-40 ～ + 50℃
	Relative humidity	5% ~ 95% , no condensation
	Heat dissipation method	Air conditioning / energy-saving fresh air combination
Basic parameters	size	20 -foot container: 5950mm2438mm2591mm	10 -foot container: 2991mm2438mm2591mm
	Reserved space	Standard rack 40 U*2	Standard rack 40 U*1
	Temperature Control System	7.5KW air conditioner + fresh air 3000 cubic meters / hour (optional)	5KW air conditioner + fresh air 2000 cubic meters / hour (optional)
	Dustproof and waterproof	IP55
	weight	<3.0 tons (excluding equipment)	<2.0 tons (excluding equipment)
Mains power introduction	Input voltage	Single-phase 85 V AC～300V AC / 380V three-phase, 45 Hz～66Hz
	Input Current	Single phase 100 A
photovoltaic	Photovoltaic capacity	Maximum 30 KW	Maximum 20 KW
Load output	capacity	Maximum 36 KW
	Rectifier module	Maximum 32 KW (-48V)
	Photovoltaic module
	Rectifier module	600W(DC 12V/24V)
	Inverter module	3KW(220V)
energy storage system	Lithium iron phosphate battery	Maximum 50 KWh	Maximum 30 KWh
dynamo	Diesel generator sets	Silent type, fully automatic, AC 380 V, 15KW~50KW ( optional)
