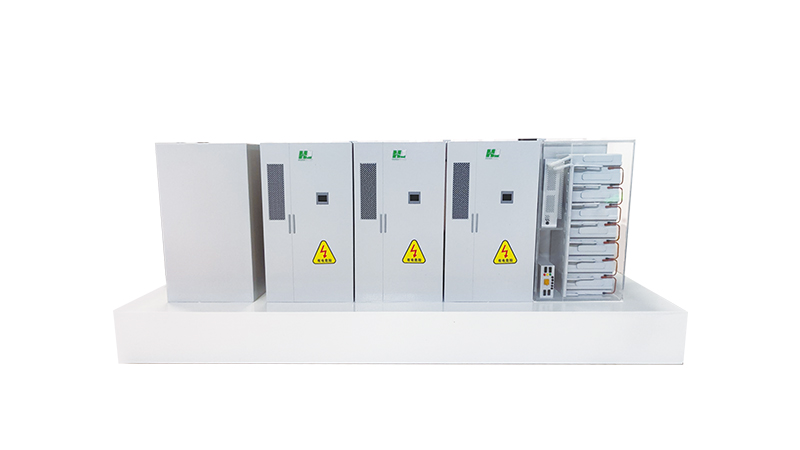

Energy Storage System Container

HJ-ESS-DESA series ( 215KWh - 1075KWh )

air-cooled series industrial and commercial energy storage system
HJ-ESS-DESA series ( 215KWh - 1075KWh )

Description

Reviews

Huijue Group's industrial and commercial distributed energy storage, independent control and management of a single cabinet, has the functions of peak shaving and valley filling, photovoltaic consumption, off-grid backup power, and flexible expansion. Modular design, 100% factory pre-assembled, can be quickly integrated and deployed without affecting production operation / building comfort. Through the unified scheduling management of the EMS system and the automatic inspection system in the cloud, the abnormality of the equipment can be detected in advance to further improve the safety of the energy storage system. Support multi-mode operation to realize energy storage system benefits.

Features

Fast power response, supporting multiple modes such as virtual power plant, grid-connected , and off-grid.


All-in-one design greatly reduces transportation, on-site installation time and cost.


Local collection, intelligent monitoring, remote operation and maintenance.


The standardized interface can connect multiple machines in parallel, which is easy to expand, and the batch manufacturing process is easier to guarantee.


Intelligent installation, operation and maintenance, support node self-adaptation, fault indication, etc., reducing on-site and operation and maintenance workload by 70%.


No isolation design, improve system efficiency
Independent single cluster battery , no circulating current, reduce power loss


Through the combined use of outdoor inverter control cabinets, distributed

Modular storage capacity of energy storage system to meet large-scale application scenarios


Local / remote upgrade, support broadcast program upgrade, compared with traditional point-to-point upgrade efficiency increased by more than 90%

Application Scenario

Shaving peaks and filling valleys

during peak electricity demand to reduce expensive electricity bills


Improve the stability of power system

by storing electricity and dispatching it when needed


Backup power

when the grid is out of power, or use as

backup power in areas without power


Peak valley arbitrage

Arbitrage by using peak and valley electricity prices in different time periods


The utilization of renewable energy

the day maximize photovoltaic power usage, while excess power is stored for use at night


Costs for power grid upgrades

Reduce the initial investment in power grid construction under the application of distributed power system scenarios

System Topology

HJ-ESS-DESA series distributed energy storage system

Product number HJ-ESS-DESA1 HJ-ESS-DESA2 HJ-ESS-DESA3 HJ-ESS-DESA4 HJ-ESS-DESA5
Number of battery cabinets 1 2 3 4 5
Rated energy 215KWh 430KWh 645KWh 860KWh 1075KWh
rated power 100KW 200KW 300KW 400KW 500KW
system efficiency 90% 90% 90% 90% 90%
size 1700 * 1250 * 2200 (single battery cabinet, reference size)
System parameters
Grid-connected system 3W+N+PE grid voltage 380(-15%~+10%) Grid connection frequency (Hz) 50(±2)/60(±2)
Power Factor -0.9 ~ +0.9 output harmonics ≤ 3% ( rated power ) cooling method air cooled
Cycle life ( times ) 80%DOD 6000 degree of protection IP54 installation method Outdoor, floor installation
weight ≦ 2500KG certified CE , ROHS , UN38.3/MSDS
