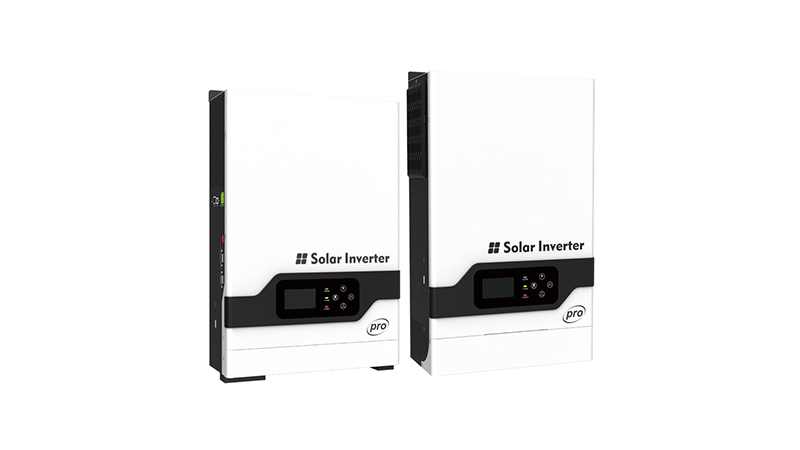

High Frequency Off Grid Solar Inverter-3KW, 5KW
Description
Reviews
Introduce
PV1800 VHM is a multi-functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible powersupport in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Feature
Rated power : 2KW -5.5KW
1、Pure sine wave solar inverter
2、Output power factor 1
3、Built-in 80A MPPT solar charger
4、Built-in anti-dust kit for harsh environment
5、Support parallel operation up to 3 units (available for 3KW-5.5KW 48V)
6、WIFI remote monitoring (optional)
7、Compatible to generator
| MODEL | PV-3KW | PV-5KW | |
|---|---|---|---|
| Nominal Battery System Voltage | 48VDC | ||
| INVERTER OUTPUT | Rated Power | 3000W | 5000W |
| Surge Power | 6000W | 10000W | |
| Waveform | Pure Sine Wave | ||
| AC Voltage Regulation (Batt.Mode) | (220VAC~240VAC)±5% | ||
| Inverter Efficiency(Peak) | 93% | ||
| Transfer Time | 10ms (UPS / VDE4105) 20ms (APL) | ||
| AC INPUT | Voltage | 230VAC | |
| Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE4105) | ||
| Frequency Range | 50Hz /60Hz(Autosensing) | ||
| BATTERY | Normal Voltage | 48VDC | |
| Floating Charge Voltage | 54.8VDC | ||
| Overcharge Protection | 60VDC | ||
| SOLAR CHARGER&AC CHARGER | Maximum PV Array Open Circuit Voltage | 145VDC | |
| PV Array MPPT Voltage Range | 60~130VDC | ||
| Standby Power Consumption | 2W | ||
| PV Input Power | 4000W | ||
| Maximum Solar Charge Current | 80A | ||
| Maximum Effciency | 0.98 | ||
| Maximum AC Charge Current | 60A | ||
| Maximum Charge Current | 140A | ||
| MECHANICAL SPECIFICATIONS | Machine Dimensions(W*H*D) | 329*485*134mm | |
| Package Dimensions(W*H*D) | 425*575*229mm | ||
| Net Weight(kg) | 12 | ||
| Gross Weight(kg) | 13.5 | ||
| OTHER | Humidity | 5% to 95% Relatiy Humidity (Non-condensing) | |
| Operating Temperature | 0°C~50°C | ||
| Storage Temperature | -15°C ~60°C | ||
