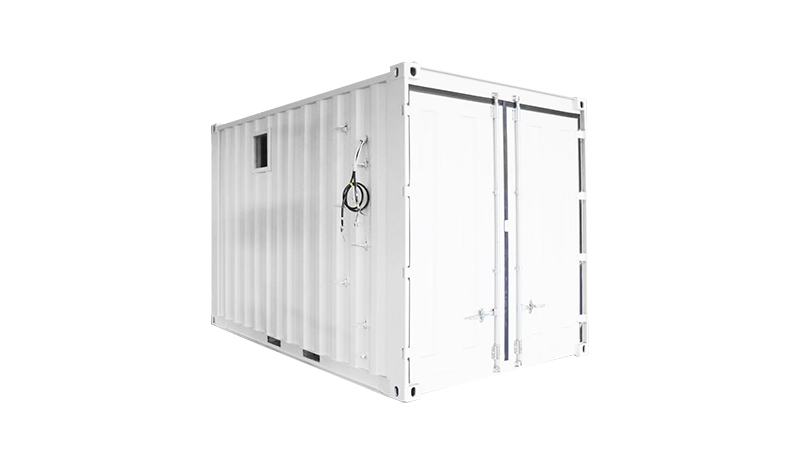

Container-type energy base station: It is a large-scale outdoor base station, which is used in scenarios such as communication base stations, smart cities, transportation, power systems and other edge sites to provide stable power supply and backup and optical distribution networks. Power communication site power supply, integrated photovoltaic, wind power, energy storage new energy systems to achieve energy-saving solutions;

Advantages

1. Support the introduction of various green power sources such as photovoltaic/wind power/oil generators, and the full load capacity can reach 600A;

2. Multiple voltage outputs: AC220V, DC48V, -12V can be used for various equipment voltages of communication, network, server and edge computing;

3. With intelligent system management, better energy saving and monitoring management;

4. Efficient, safe, long life (up to 3500 cycles) energy storage backup battery;

5. Temperature-controlled energy-saving fresh air system + precision air-conditioning refrigeration, intelligent temperature control management, reducing air-conditioning power consumption;

6. The protection level of the cabinet is IP55, and the salt spray time is 500 hours, which can be used in various harsh outdoor environments;

7. The shell of the product is made of aluminum alloy material, which is light and can be handled manually; at the same time, it supports factory prefabricated products, and the cabinet can be hoisted as a whole (can be relocated multiple times);

8. Complete lightning protection grounding system;

9. The FRP material on the outer layer of the cabinet has strong anti-corrosion performance and can be used in coastal scenes;



Customization: The product specification refers to the standard design basis of the communication equipment room, and the configuration of the equipment room can be customized according to customer needs (power supply, battery, air conditioner and other supporting facilities can be configured, and the number of reserved machines is different according to different models).

Fast installation: according to site conditions, modular assembly structure (on-site installation) and integrated prefabricated sets can be shipped;

Intensive construction : according to the requirements of Party A, facilities such as cable racks, grounding bars, lighting, and AC distribution boxes can be configured before leaving the factory, saving Party A the trouble of secondary dispatching construction and shortening the delivery time.

Excellent thermal insulation performance : FRP (glass reinforced plastic material), iron armor steel plate material or GRC prefabricated material can be set on the outer layer of the machine room according to requirements;

Configuration parameter table
serial number name Parameter Description quantity unit Remark
1 Outdoor cabinet cabinet 5960*2500*2800mm (L*W*H), the frame of the machine room adopts iron armor machine room type, 75mm thick sandwich board, equipped with cable racks and optical fiber channels inside, equipped with standard racks*6 sets, anti-theft doors, feeder bins*2 ; HJ-DYG01-1 The base adopts channel steel welded structure, electrostatic floor, grounding row * 2 pieces; the top is reserved for installation of photovoltaic panels; 1 tower
2 Dynamic monitoring unit 4-way RS485 serial port, 4-way DI input, 4-way DO dry contact output, the software has a web management interface, the collector can be configured through a web browser, and it supports centralized monitoring through SNMP or B interface access to the background monitoring system. Environmental detection: smoke detection, access control, temperature and humidity, water immersion, etc. 1 set
3 Automatic fire extinguishing device The automatic fire extinguishing device is composed of perfluorohexanone storage container, container valve, pressure signal device, temperature trigger, perfluorohexanone fire extinguishing agent, pressure gauge, etc., and the container stores perfluorohexanone fire extinguishing agent 1 set
4 Smart anti-theft lock Smart lock: remote switch, card swiping, mechanical key; 2 set
5 ODF rack Contains 576-core ODF, fully equipped with pigtails and fiber optic adapters, etc. 1 tower
6 dome camera ≥2 million infrared hemispheres (POE) (can support external memory card) 1 set Door open capture function
7 Fresh air/air conditioning system Air conditioner 7500W+ 3000m3/h fresh air system 1~2 set
8 power distribution unit AC input: 63A/3P*2 with interlock device; AC lightning protection: Class C 20KA-40KA; AC output 32A/1P*10A/1P*2, national standard socket*2; DC output power distribution: 63A*3,32A *3*16A*4; configure intelligent air switch *3 roads, battery air switch 125A*4; 1 set Can be adjusted according to needs
9 rectifier module Rectifier module 50A, high efficiency 6 set Photovoltaic and rectifier modules are inter-plugged
10 Photovoltaic module Photovoltaic module 50A, MPPT efficiency: ≥99% (select this module when configuring photovoltaic modules) 2~8 set
11 Wind Energy Control Module 2.5kW, input AC96V, output DC48V 1 set Optional (matched with fan)
12 inverter module Inverter module 3KVA 1 set Optional
13 12V rectifier module 500W 1 set Optional
14 Lithium iron phosphate battery 100AH, rack-mounted -48V, more than 3000 charging cycles, 16S 6~10 set Maximum 50KW.h
15 Solar panels Monocrystalline panel complete assembly 550W, including adapters, installation accessories 20 set Optional Maximum 2 blocks
16 Wind Turbines 1KW~2KW, including pole body 9 meters high 1 set Optional (matches with fan module)

Temperature control system-1

Self-cleaning fresh air system



Negative pressure vacuum principle

The outdoor cold air is filtered by the filter module and introduced into the cabinet through the principle of negative pressure vacuum, and the hot air is discharged to reduce the temperature of the equipment room and maintain the normal operation of the equipment room.

Two-stage self-cleaning function

The outdoor cold air is filtered by the high-efficiency filter module, combined with the negative pressure scanning vacuum principle of the vacuum cleaner, on the one hand, it can effectively filter out dust and other tiny particles in the air, and at the same time, the dust on the filter net is automatically sent out of the room through the back suction of the vacuum cleaner, and the end of the exhaust is blown back to the outside Catkins, catkins and other sundries in the insect-proof net, the system automatically cleans the filter device in two stages.

Intelligent control function

The new fresh air system equipment monitors the indoor and outdoor temperature at all times through sensors, and links with the air conditioner in the computer room through infrared rays to intelligently control the air conditioner switch. Keep the computer room within a reasonable operating temperature range.

Economical operation, energy saving and environmental protection (low power consumption);



Temperature control system-2

Optional according to needs:

1. Frequency conversion floor air conditioner (3P~5P);

2. Precision air conditioner (5P and above);

Main functions of air conditioner:

Incoming call starts automatically

Remote monitoring

High energy efficiency ratio

Dual machine backup function

Delayed start function

Fan motor secondary protection



Fresh air system + air conditioner energy-saving solution:

1. Prioritize the start of the fresh air system, low power consumption cooling, to achieve low carbon and energy saving;

2. When the weather is hot, according to the indoor temperature is higher than 35 degrees, start the air conditioner to cool down the interior;

Frame system Dimensions (WxDxH) 442mm () x 430mm (D) x 222mm (H)
  installation mode 19 inch rack mount
  Alignment forward forward out
input characteristics Input voltage Two-phase four-wire system 380VAC (two-way interlock)
  Current module maximum input current Single mode up to 21A (Max 168A)
  Solar module input 58VDC~150VDC
  Solar module maximum input current Single mode up to 60A
output characteristics The output voltage 43.2V DC ~58V DC (Default 53.5V DC )
  Rated output power 10000W (176VAC-300VAC)
    5000W (85VDC~175VDC, linear derating)
  peak efficiency 96.20%
  Output rated current 200A
  Voltage regulation accuracy Total +0.6%
  Output Interface Power off DC load: 653A
    AC load output: 332A
    Electric drain interface: 10125A
Monitoring Module (SMU48A) signal input 1 channel analog input (battery temperature
    4 dry contact inputs
  Alarm output 4 dry contacts
  Communication Interface RS485
  storage Up to 1000 historical alarm records
  display mode LCD
environment Operating temperature -20~+75C (-40% can be started)
  storage temperature 40C~+75C
  Working humidity 5%~95%(no condensation)
  Altitude ≤4000m (1800m~4000m, every time the altitude rises by 200m, the temperature will decrease by 1%C.)
