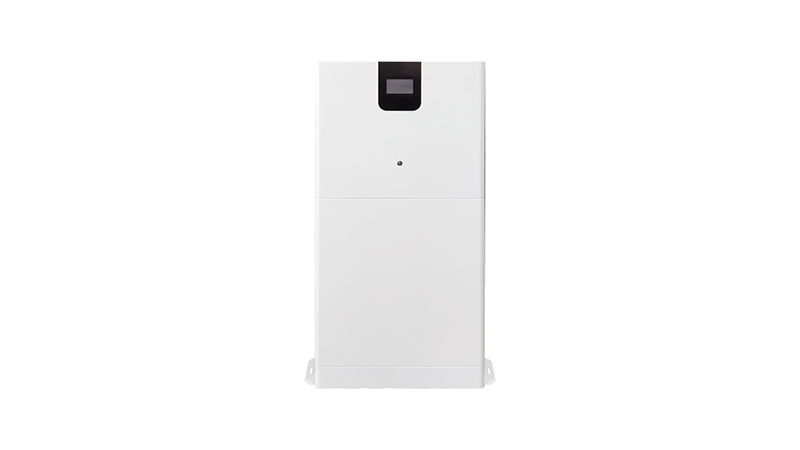

ALL IN ONE home energy storage system with inverter
Description
Reviews
HJ-EOV series battery packs are high-voltage stacked all in one energy storage systems, designed entirely for residential ESS applications. With this product's integrated battery and inverter, you can reduce your adaptation worries, easily save on electricity bills and back up your power in case of grid outage or unavailability
| HJ-EOV48-5.0S-H1 | HJ-EOV48-10.0S-H1 | HJ-EOV48-15.0S-H1 | HJ-EOV48-20.0S-H1 | |
|---|---|---|---|---|
| BATTERY TECHNICAL SPECIFICATION | ||||
| BATTERY TECHNICAL SPECIFICATION |
HJ-EOV48-5.0A-E1 |
|||
| Number of batteries | 1 | 2 | 3 | 4 |
| Battery Energy | 5.12kWh | 10.24kWh | 15.36kWh | 20.48kWh |
| Battery Capacity | 100AH | |||
| Weight | 80kg | |||
| Dimension L× D× H | 1190×600×184 | |||
| Battery Type | LiFePO4 | |||
| Battery Rated Voltage | 51.2V | |||
| Battery Working Voltage Range | 44.8 ～ 57.6V | |||
| 100A | ||||
| Maximum Discharging Current | 100A | |||
| DOD | 80% | |||
| Parallel Quantity | 4 | |||
| Designed Life-span | 6000 | |||
| INVERTER TECHNICAL SPECIFICATION | |
|---|---|
| Inverter model | HJ-EOV48-5.0S-C1 |
| PV CHARGE | |
| Solar Charge Type | MPPT |
| Maximum Output Power | 5000W |
| PV Charging Current Range | 0〜80A |
| PV Operating Voltage Range | 120〜500V |
| MPPT Voltage Range | 120〜450V |
| AC CHARGE | |
| Maximum Charge Power | 3150W |
| AC Charging Current Range | 0〜60A |
| Rated Input Voltage | 220/230Vac |
| Input Voltage Range | 90〜280Vac |
| AC OUTPUT | |
| Rated Output Power | 5000W |
| Maximum Output Current | 30A |
| Frequency | 50Hz |
| Overload Current | 35A |
| BATTERY INVERTER OUTPUT | |
| Rated Output Power | 5000W |
| Maximum Peak Power | 10KVA |
| Power Factor | 1 |
| Rated Output Voltage (Vac) | 230Vac |
| Frequency | 50Hz |
| Auto Switch Period | ＜15ms |
| THD | ＜3% |
| GENERAL DATA | |
|---|---|
| Communication | RS485/CAN/WIFI |
| Storage time / temperature | |
| Charging temperature range | 0〜45℃ |
| Discharging temperature range | -10〜45℃ |
| Operation Humidity | 5% 〜85% |
| Nominal Operation Altitude | ＜2000m |
| Cooling Mode | Force-Air Cooling |
| Noise | |
| Ingress Protection Rating | IP20 |
| Recommended Operation Environment | Indoor |
| Installation Method | Vertical |
| Certification | UN38.3,MSDS,EN55032,EN55024,EN61000-32,EN61000-3-3 |
| AC OUTPUT | |
| Rated Output Power | 5000W |
| Maximum Output Current | 30A |
| Frequency | 50Hz |
| Overload Current | 35A |
| BATTERY INVERTER OUTPUT | |
| Rated Output Power | 5000W |
| Maximum Peak Power | 10KVA |
| Power Factor | 1 |
| Rated Output Voltage (Vac) | 230Vac |
| Frequency | 50Hz |
| Auto Switch Period | ＜15ms |
| THD | ＜3% |
